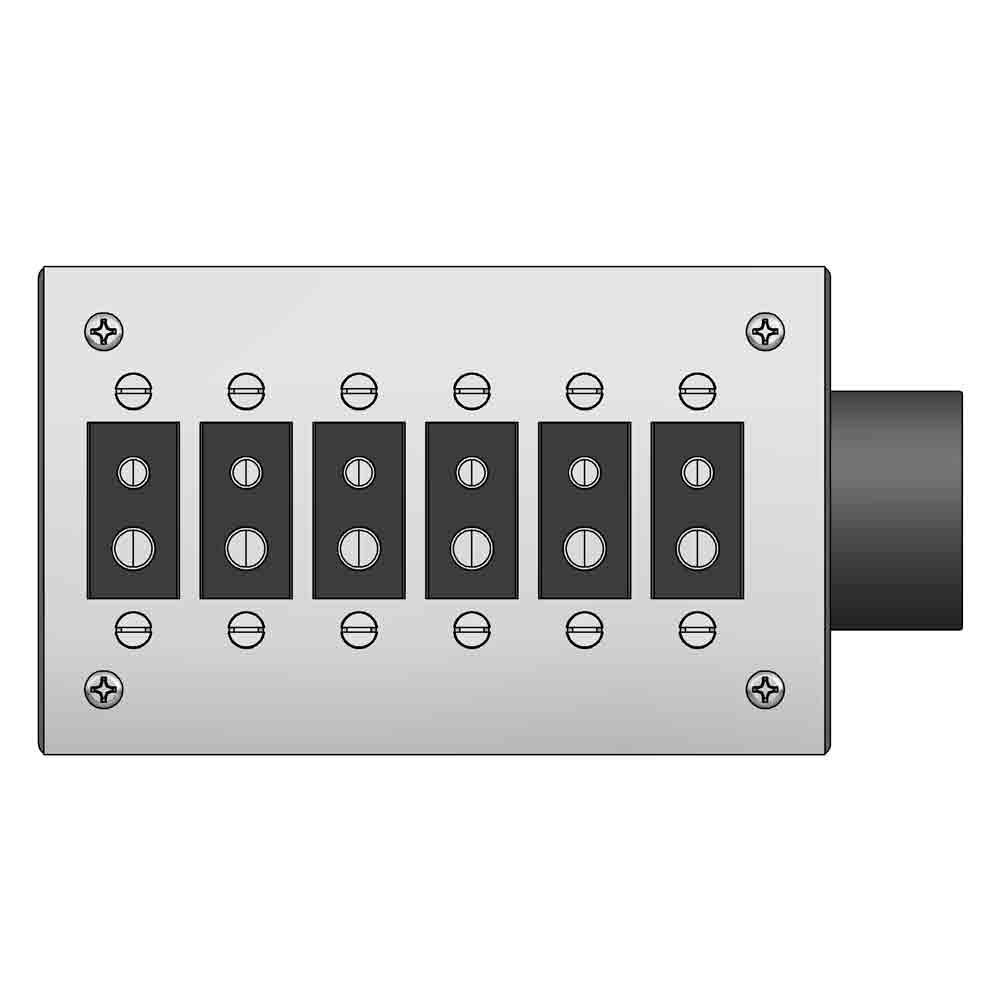

Jack Panel and Plug Panel Conduit Boxes
Plug Panel and Jack Panel Conduit Boxes are excellent solutions for indoor applications and anytime it is desirable to quickly land multiple thermocouples to a conduit box. Panels can be built for all types of thermocouples and RTDs.
| Thermocouple Type | Material | Magnetic | ASTM Color Coding | IEC Color Coding |
| J | Iron Constantan | Yes No |
White Red |
White Black |
| T | Copper Constantan | No No |
Blue Red |
White Brown |
| K | Chromel Alumel | No No |
Yellow Red |
White Green |
| E | Chromel/Constantan | No No |
Purple Red |
White Violet |
| P | Platinel | N/A | N/A | N/A |
| S | Platinum 10% Rhodium Pure Platinum | No No |
Black Red |
White Orange |
| R | Platinum 13% Rhodium Pure Platinum | No No |
Black Red |
white Orange |
| B | Platinum 30% Rhodium Platinum 6% Rhodium | No No |
Grey Red |
White Grey |
| N | Nicrosil/Nisil | No Slightly |
Orange Red |
White Pink |
| C | Tungsten 5% Rhenium/ Tungsten 26% Rhenium | No No |
White Red |
N/A |
| Material | Description | Used With | Maximum Temperature |
| Alumina | Aluminum Oxide Ceramic | Noble Metal Thermocouples | 3400°F (1870°C) |
| Mullite | Alumina and Silica (Silicon Carbide) | Base Metal Thermocouples | 3100°F (1700°C) |
