Support Accessories for Plugs & Jacks

Tube Adapter for use with plug or jack on sheath

Nickel plated steel construction compression fitting. Always used with high temperature connectors and dual connectors mounted to sheath, may be specified on standard plugs and jacks.

Round single circuit panel jack

Designed for mounting into an instrument case or control panel from the front. Fits in a standard 3/4" knockout (1 1/8" diameter). Polarity and color coded for identification.

• 6RSC (standard)

• 6RMCR (mini)

Maximum temperature 400°F (204°C)

jack not included

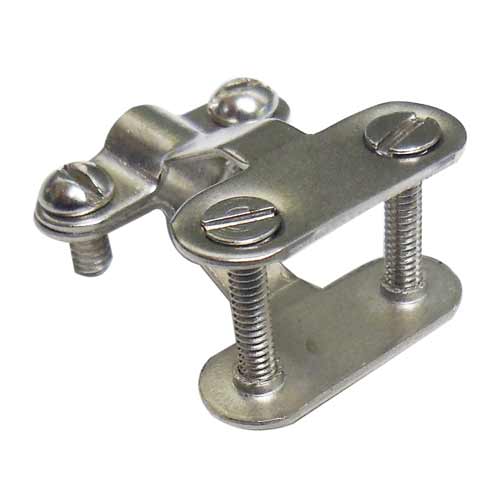

Cable clamp for use with plug & jack with lead wire

Nickel plated steel. For cable up to 3/8" in diameter. Always used to support plug mounted on wire lead.

• 6H

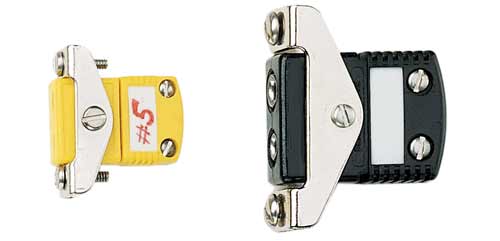

Panel Adaptor

Nickel plated steel. Used to attach a plug or a jack to a panel.

• 6ACL

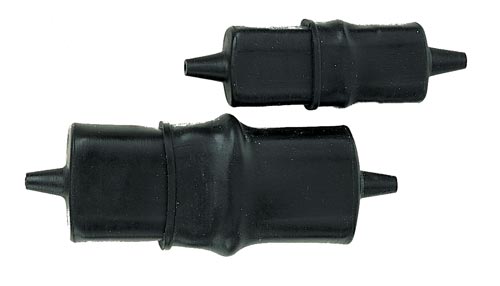

Water Resistant Neoprene Boot for use with Plug and Jack

Flexible moisture proof boot for connector and wire connection. Maximum temperature 212°F (100°C)

• 6WPBM (mini plugs & jacks)

• 6WPB (standard sized plugs & jacks)

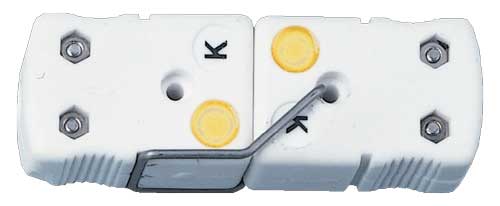

Plug Lock

Locks a plug and jack to prevent unwanted disconnects.

• 6FCL

6CC Cord Connector

For use with attaching head assemblies & flex armor.

6JBC Junction Box Connector

Miscellaneous supporting accessories for thermocouple and RTD products.
